Technical Parameters

Application:

Dairy products, pharmacy, beer, food, feedstuff, environment protection water treatment, cosmetics and chemical engineering field;
This valve has precision design,can respond quickly, with extremely small water hammer action but with higher flow speed; lnterface is threaded mouth(regular), external part is firstly guided with corner valve, there is self-adjusting seal gland between overflow port and sliding block, valve body corner seat structure can ensure comparatively large flow capacity, extend service lifetime, with characteristics such as being economical, non-maintenance, easy installation and low energy consumption.

Technical parameters:

Pressure range: 0~16 bar
Medium temperature:-10°C～+180°C
Ambient temperature: 100°C~+600°C
Valve material: sUS316L
Seal material: Polyfluoro Tetraethylene PTFE
Control gas: neutral gas,air

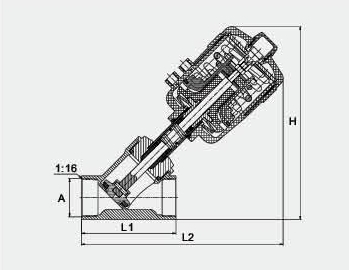

Regulating Valves:

	SIZE	A	L1	L2	H
	DN20	Rc3/4	94	200	185
	DN25	Rc1.0	104	210	195
	DN40-s	Rc1.5	130	225	212
	DN40-b	Rc1.5	130	300	287
	DN50	Rc2.0	150	320	306
	DN65	Rc2.5	185	347	333
