Technical Parameters

Specification:
Flow Rate：1-500m³/h
Head Range：1m-100m（0.1-10bar）

Materials:
SUS304,SUS316L(In the selection of materials all parts that contact the ma ter ials such as pump body, pump cower and impeller are made a sUS316L or sUS304 sainless steel.)

Standards:
DIN, SMS

lmpeller:
Open impeller , writhout dead coner d sanitation

Work condition:
The sanitary centrifugal pump adopts horiz ontal conveying with high and low liquid lewels. It is not of self-priming type.(Please select the self-priming pump to self-priming type.)

Surface Treatment:
The liquid receiving part is subject to polishing treatment and other parts matte or sandblasting treatment

M aximum inlet pressure:
0.5MPa

Temp erature range:
-10℃ to+ 140℃(EPDM)

Washable mechanical seal:
Water pressure. Max. 0.1MPa;water volume: 0.25-0.5L/min

Motor:

1.Depending on the configuration, the pump mainty adopts”ABE” brand high-cfficiency M2BAX three-phase AC motor .The pump is designed and manufactured according to IEO60034.IE60072, conforming to CE marking requirements
2. The explos on-proof motor is available to meet the needsin different applications
3. With excellent electric performance,low noise and lowwibraton, the motor is designed to have standard protectiongrade d IP 55 and insula tion grade of grade F.
4. Frequency: 5OHz/60t
5.Working mode: continuous(SD)
6.Roation speed: The standard roaticn speed of the pumpis 29 00r/min.

Product Structure

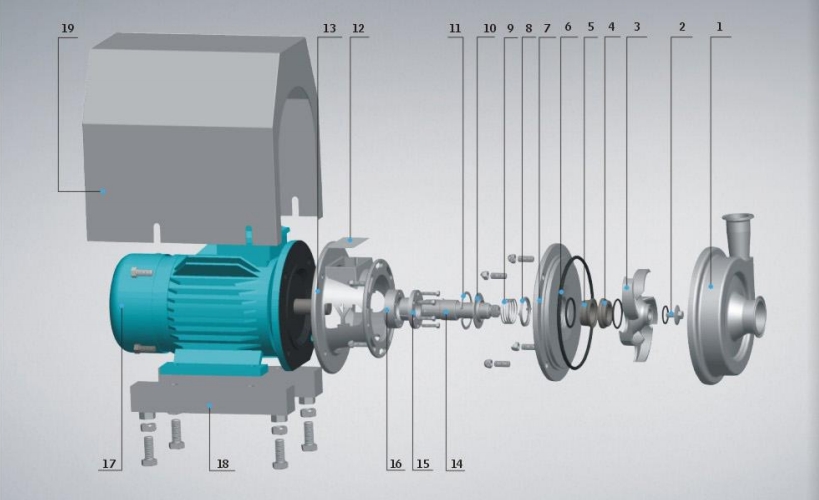

Stru cture ex ploded figure of YUY-L series sanitary centrifugal pump：

1. pump body 2. Shaft cap 3. Impeller 4. Mechanil seal dynamic ring 5. Pump body Oring 6. Mechanial seal static ring 7. Impeller seat 8. sta tic ring seat 9. Spring 10.Retainer ring

11.Snap spring 12. Name plate 13.Support14.pump shaft 15.Straining ring 16.straining sleeve 17.Motor 18.Pump foot 19.Housing

Connection ways of pump inlet and outet：

Energy loss of liquids may occur in the pipe The loss falls into friction loss andlocal resistance loss The smoother the pipe is, the lower the friction loss is Thetewer the bend is the lawer the pipe diameter change is and the lower the localresistance loss is. Therefare, ty not to use rough pipes for connection, and avoidusing the method of rapid pipe changes during the connection.

Pipe diameter and connection distance：

When the pump runs under small flow， the efficiengy is very low, and the energyConsumed makes the liquid temperature rise rapidly. When the pump runs undersmall flow, the return fiow that passes the impeller interval will inarease,causinginaeaed dama ge of pump pressure pulse,vibration,noise, etc. Theret ore, it isbetter that the connected pipe inlet diameter should be more than ar equal tothe designed inlet dameter. In order to ensure that the pump runs more stably,it is necessary to connect with a long straight pipe at the pump inlet with itslength 5-10 times longer than the pipe dia meter.

Product performance

YUY-L series performance and modelselection table：

Model descriptions of YUY sanitary centrifugal pump:

For Example

Sanitary Centrifugal Pump
Flow: 3
Lift: 16
Motor Power: 1.5
Seal Type: Externall mechanical seal
Connection Type: Clamp

Technical parameters:

Performance Curve

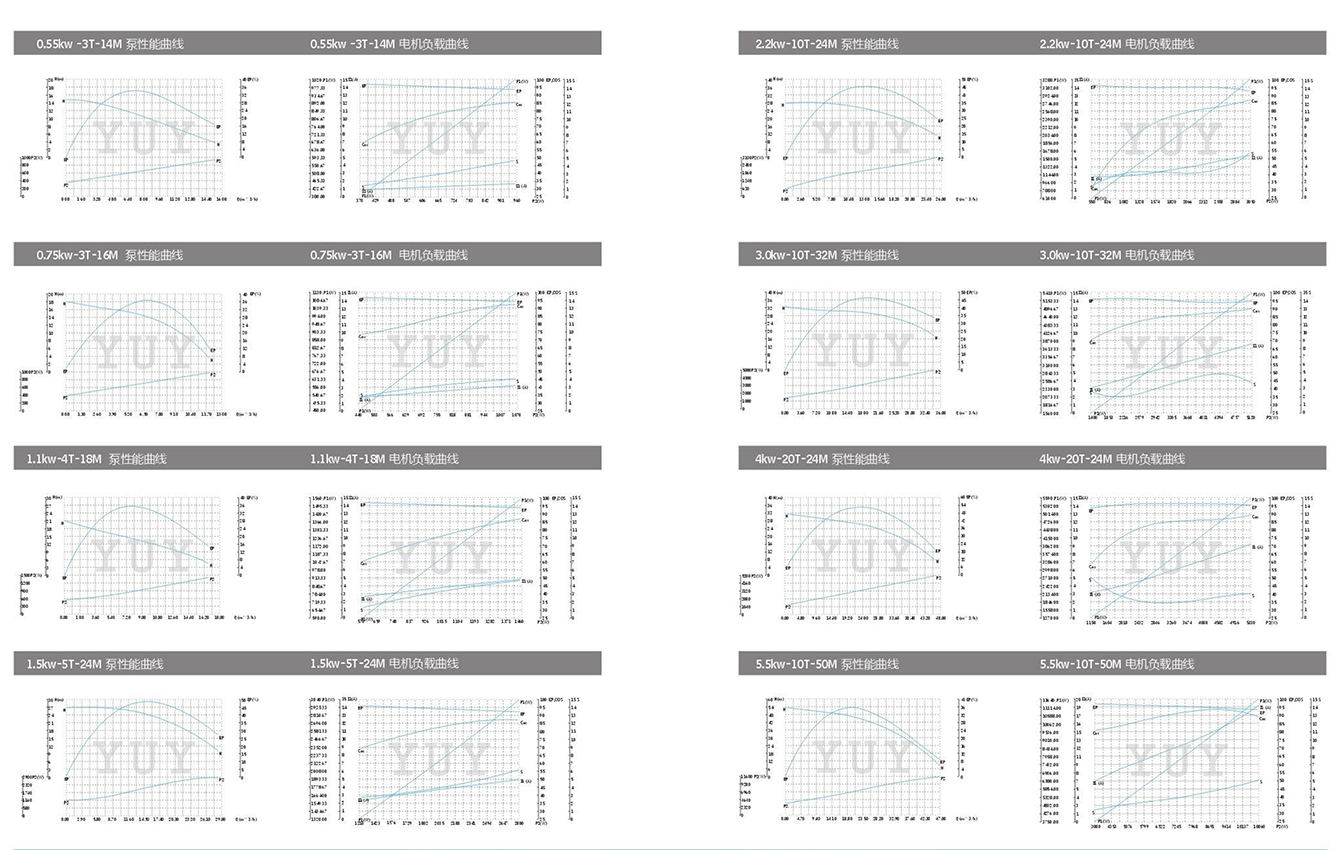

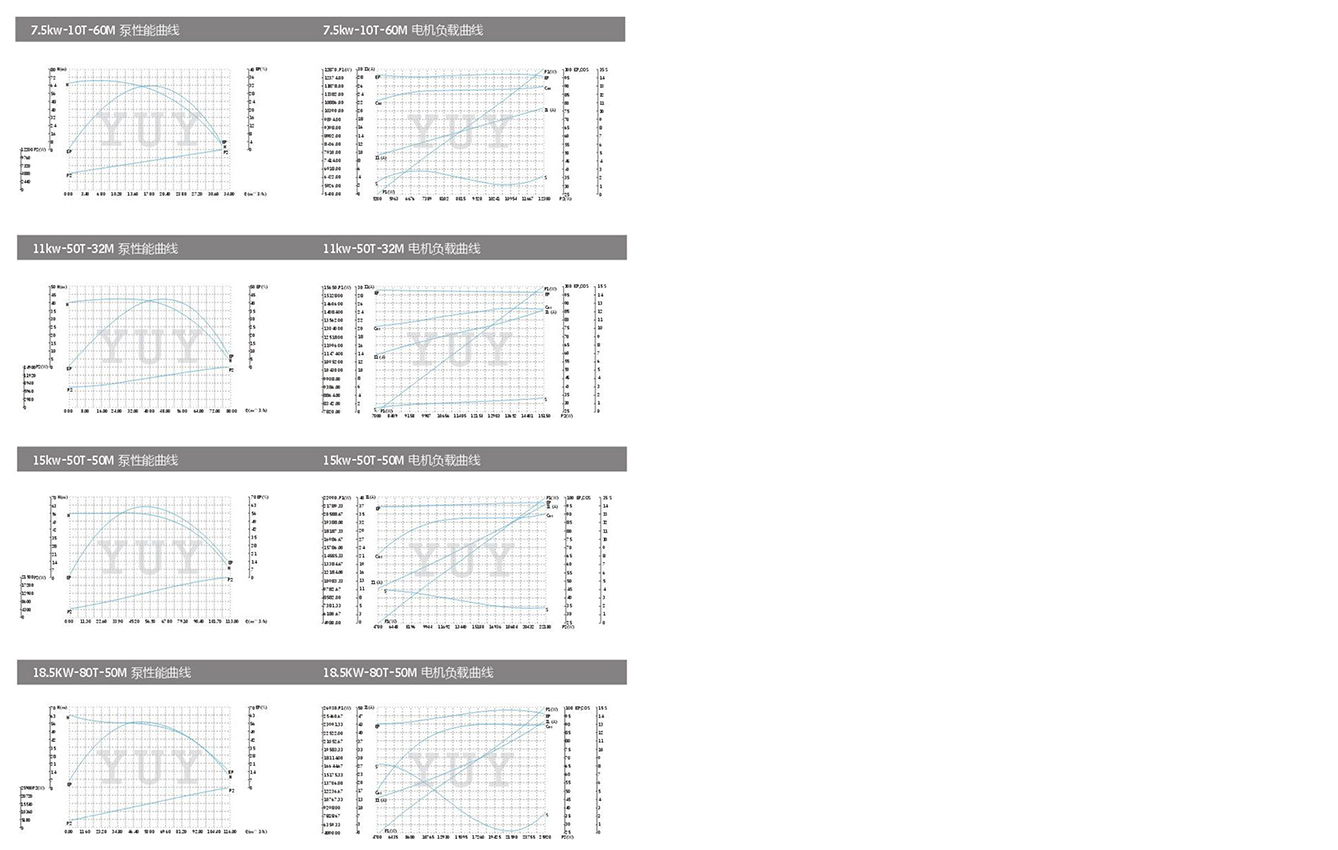

Product performance curve chart：

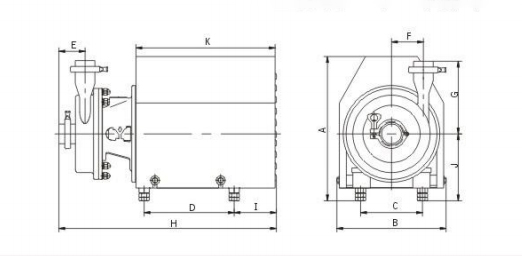

Equipment Diagram

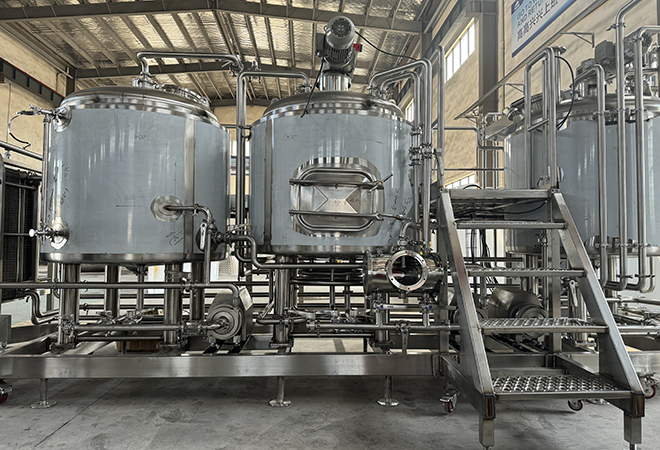

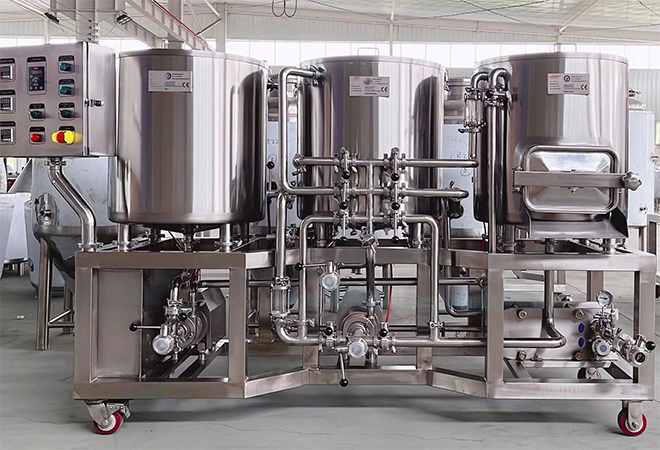

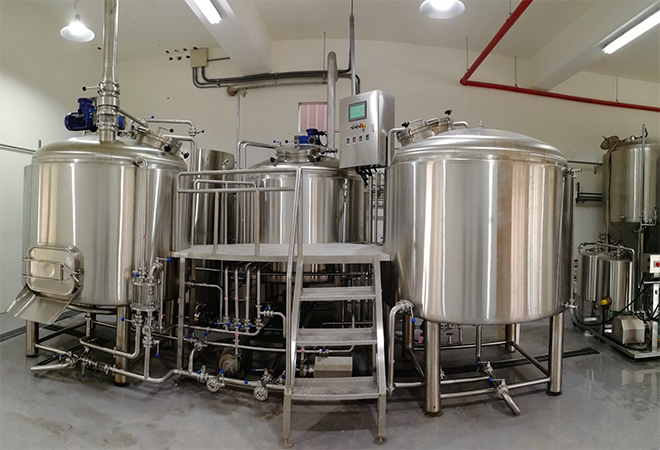

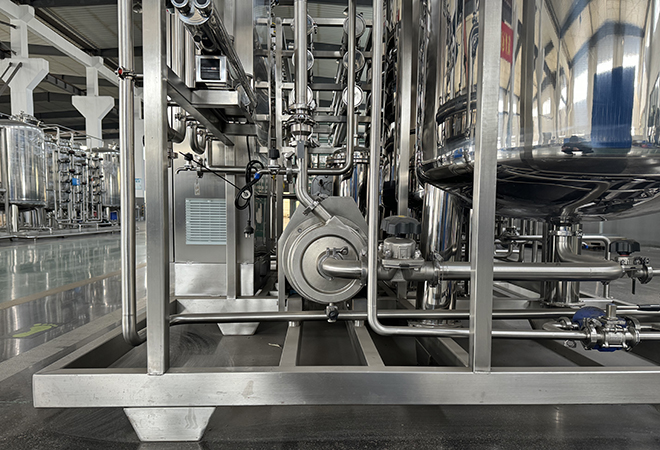

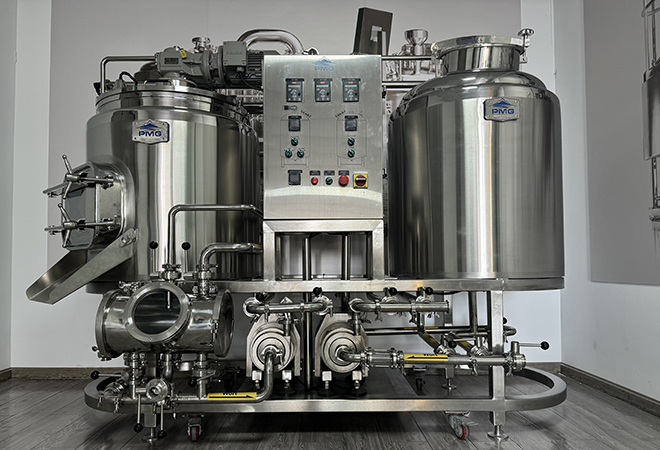

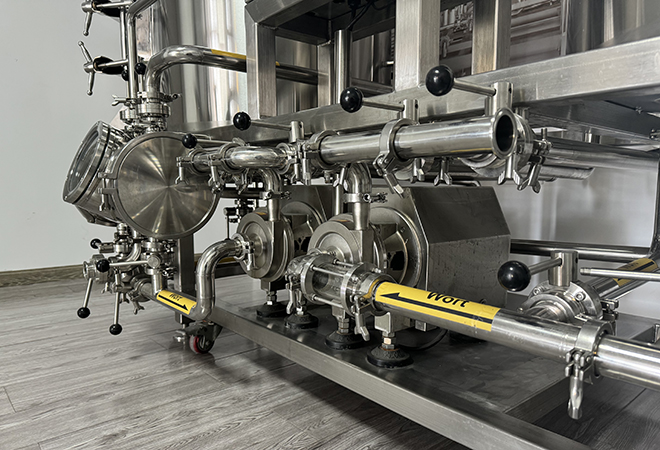

Brew Equipment :

Product Video

Dry run Test for Mechanical Seal
