Constant pressure valve is a sanitary constant pressure valve to be applied to the food processing, beverage, pharmaceutical, and other areas of the pipeline system.
Constant pressure design has two kinds to maintain a constant pressure function selection：
1) V type (Inlet constant pressure); maintain constant pressure at the valve inlet. Such design is specially applied at the back of heat-exchanger. It is used as safety valve.
2) A type (Outlet constant pressure): maintain constant pressure at the outlet. Such design is used as the front of filling machine and bottle filling machine.
Application:
This sery valve used to maintain a constant pressure of inlet or outlet Connetion is flexible ,and with ideal mobility and cleaning .It is very easy to operate ,maintenance ,adjust
Datasheet:
Material pressure: ≤10bar
Temperature range-10°C～150℃
Compressed air pressure:0~8bar
Actuators use compressed air quality requirements
Compressed air connection: Air tube equipped with air connector R1/8″
Max Particle size: 0.01mm
Max oil content: 0.08ppm
Dew point: atmospheric temperature 10C or lower
Max water content: 7.5g/kg

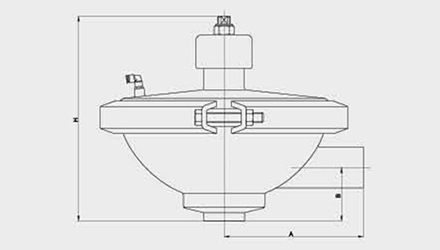

Sanitary contronl valve (YY)
 | DIN | 3A | SMS | ISO | A | B | H |
| DN32 | 11/2″ | 38 | φ38 | 114 | 45 | 180 | |
| DN50 | 2″ | 51 | φ51 | 114 | 49 | 180 |
