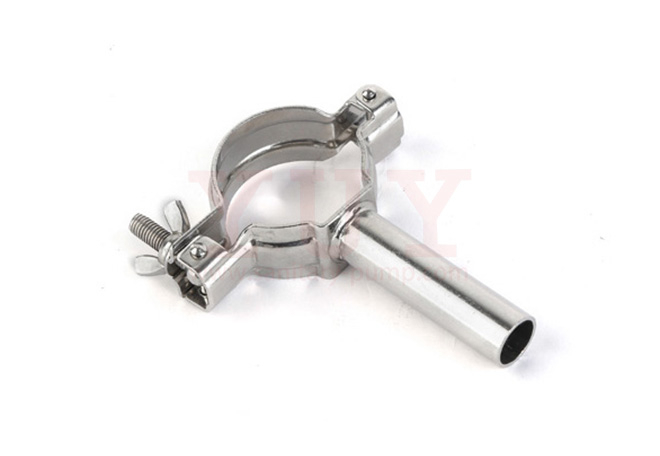

PIPE HOLDER

Pipe Holder are widely used in industrial fields such as dairy, food and beverage, beer, biopharmaceuticals and daily chemicals.

Share:

Technical Parameters

Sanitary Pipe Holders

Pipe holder				Hexagon pipe holder				Hexagon pipe holder
No.YUY080001	Size	H	D	No.YUY080002	Size	A	H	No.YUY080003	Size	A	H
	1″	61	25.4		1″	87	36.8		1″	87	136.8
	11/4″	64	31.8		11/2″	101.6	53.9		11/2″	101.6	53.9
	11/2″	67	38.1		2″	114.3	63.5		2″	114.3	63.5
	2″	74	50.8		21/2″	120.6	79.4		21/2″	120.6	79.4
	21/2°	80	63.5		3″	139.7	95.2		3″	139.7	95.2
	3″	86	76.2		4″	171.4	120.6		4″	171.4	120.6
	31/2″	93	89
	4″	100	101.6
	41/4″	102	108
	41/2″	105	114
	5”	115	133
	6″	128	159

Hexagon pipe holder				Hexagon pipe holder with handle
No.YUY080004	Size	A	H	No.YUY080006	Size	A	D	H
	1″	87	36.8		1″	61	25	145
	11/2″	101.6	53.9		11/2″	76	38	51.5
	2″	114.3	63.5		2″	90	51	58
	21/2″	120.6	79.4		21/2″	106	63.5	64
	3″	139.7	95.2		3″	120	76	70.5
	4″	171.4	120.6		4”	146	101.6	83

Round pipe holder with handle				Hexagon pipe holder with handle
No.YUY080005	Size	A	D	No.YUY080007	Size	A	D
	1″	66	25.4		1″	61	25
	11/2″	76	38.1		11/2″	76	38
	2″	90	50.6		2″	90	51
	21/2″	105	63.5		21/2″	106	63.5
	3″	120	76.3		3″	120	76
	4″	146	101.6		4”	146	101.6

×

Submit a Quick Quote

For a better quotation, please specify the required flow rate (m³/h or L/min) and head range (m or ft) or other specifications. Our sales representative will contact you within 24 hours. Thank you for your interest!
